Chassis - 350x350x12 mm steel tubing
Sections - 200x100x8 mm steel tubing
Supports - Oscillating with 2 bearings with tapered rollers and interchangeable Ma/Ag casing system
Trolley Control - Double-acting jack with hydraulic slider to adjust the working depth
Discs Axle - 40x40 mm steel square
Scraper - Individually adjustable vane
Command Sections - Manual on request hydraulic
Wheel Axle - 80x80 mm steel square with 8-hole hub. Wheels 400 / 60-15.5
Scraper - Individually adjustable vane
Command Sections - Fully hydraulic independent front and rear sections
Wheel Axle - 60x60 mm steel square with 6 holes hub
Tool Balance Kit - Hydraulic adjustment
Shooting Discs - Standard with scraper
Various sizes available
DISC HARROW EDX 2000M
Chasis – 120x100x7 mm steel tubing
Sections – Steel tubular 140x70x7 mm swivelling to reduce the encumbrance on the road
Supports – Oscillating with 2 bearings with tapered rollers and interchangeable Ma/Ag casing system
Disc Axle – 40x40 mm steel square
Scraper – Individually adjustable vane
Command Sections – Manual with plates and holes
Discs - 40x40 mm steel square
Various sizes available
DISC HARROW EDX 780
Chasis – 90x90x7 mm steel tubing
Sections – Steel tubular 100x50x7 mm swivelling to reduce the encumbrance on the road
Supports – Oscillating with 2 bearings with tapered rollers and interchangeable casing system Ma/Ag
Disc Axle – 30x30 mm steel square
Scraper – Individually adjustable vane
Command Sections – Manual with plates and holes
Discs - Diam. 560 mm x 4.5 mm or diam. 610 mm x 5 mm
Various sizes available
EDX 750
Chasis - Steel tubular 100x100x7 mm
Sections - Steel tubular 100x50x7 mm
Supports - Oscillating with 2 bearings with tapered rollers and interchangeable Ma/Ag casing system
Disc Axle - Steel square 30x30 mm
Scraper - Individually adjustable vane
Discs - Diam. 560 mm X 4.5 mm or diam. 610 mm X 5 mm
Distance Discs – 230 mm
Section Angle - Hydraulic
Various sizes available
EDX 750
Chasis – Steel tubular 100x100x7 mm
Sections – Tubular steel 120x60x7 mm
Supports – Oscillating with 2 bearings with tapered rollers and interchangeable Ma/Ag casing system
Disc Axle – Steel square 40x40 mm
Scraper – Individually adjustable vane
Discs - Diam. 610 mm x 5 mm or diam. 660 mm x 6 mm
Distance Discs – 230 mm
Section Angulation – Hydraulics
Various sizes available
EDV 780

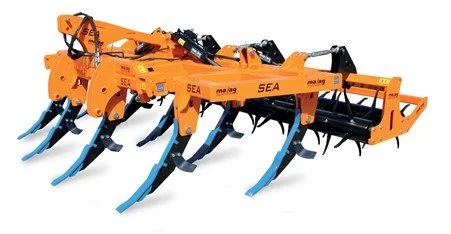

Implement brought to the hydraulic foldable lift in 2 sections
Frame built with tubular steel 100x100x10mm and connecting sheets
Variable number of anchors from 9 to 15 arranged in 2 rows according to the working width and available power
Anchor in anti-buckling steel th.30mm equipped with a safety device by means of a stretch screw
Reversible share and anti-wear protection, interchangeable. It is possible to mount a pair of explosion flaps on the anchor
Double spiked roller with hydraulic adjustment
Height under frame com 75 – working depth up to 45cm
